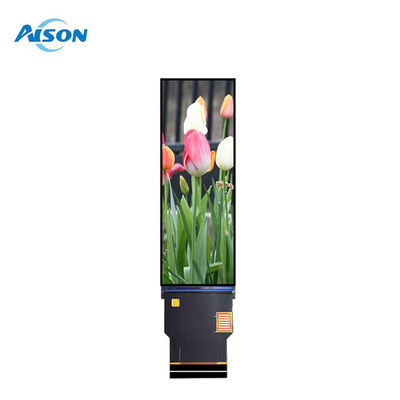

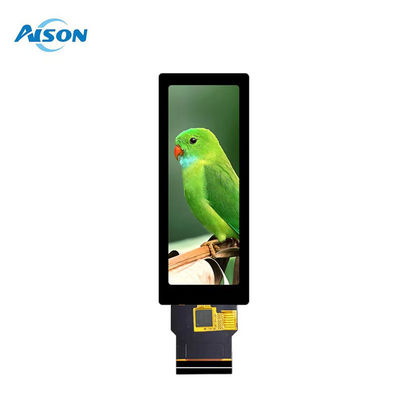

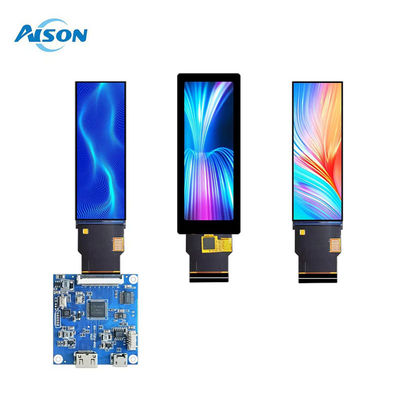

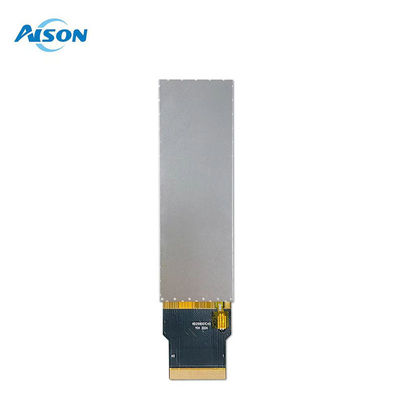

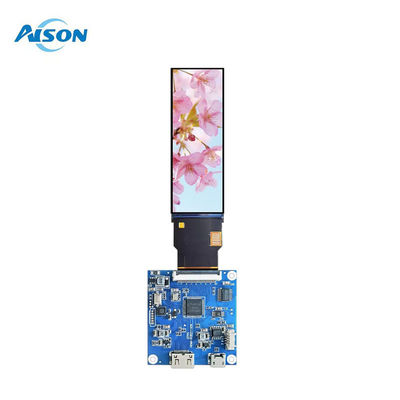

2.99 Inch TFT Bar Display Drive IC ST7701S 268RGB*800 TFT LCD Module

Z0299WV01is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.

Key Features of the DBC030HVN40R035A Bar LCD Display:
- Screen Size and Resolution: 3-inch display with a resolution of 268 x 800 pixels, ensuring vivid and detailed visuals.
- Display Technology: a-Si TFT with 16.7 million colors, delivering sharp and clear images.
- Compact Design: Measures 26.96*80.08*1.72mm, fitting easily into small spaces.
- Interface: SPI+RGB compatibility, providing easy integration into various systems.
- LED Backlighting: Equipped with 6 LEDs for uniform brightness, rated to last over 35,000 hours.
- Operating Range: Withstands temperatures from -20°C to 70°C, making it suitable for harsh environments.

Applications:
The Bar LCD display is ideal for applications such as:
- Industrial control panels
- Automotive displays
- IoT devices

Technical Specifications:
- Contrast Ratio: High contrast of 1200:1 ensures excellent readability.
- Brightness: high brightness 800 nits, providing clear visibility in diverse lighting conditions.
- Wide Viewing Angles: 85° viewing from all directions, allowing flexibility in installation.
